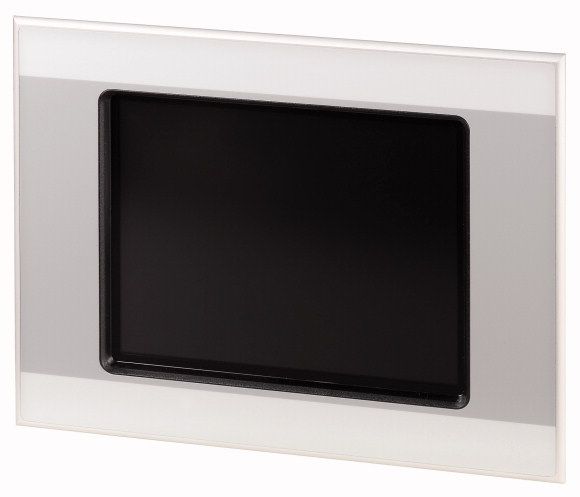

HMI/PLC with touch display XV400

Features

The XV400 series is flexible and feature-rich with optional communication modules enabling up to 8 parallel communications interfaces. CAN, Ethernet 10/100Mbit, USB Host, USB and RS232 are integrated for additional versatility. Built in features include a Web browser, FTP server, remote client/ server or OPC client offering more networking and programming options.

  • 400 MHz CPU for complex HMI or HMI/PLC applications
  • Adaptable touch technologies
  • Robust infra-red touch (infra-red light barrier grid touch-system)
  • Industrial resistive touch with full plate-laminated polyester sheet against splintering
  • Scalable display sizes from 5,7“ to 15“
  • Optional modules give over 100 communication protocols
  • CAN and optional Profibus DP (12 MBaud)
  • Infrared touch
  • Stainless steel front

For XV-400 devices, there are communications modules, memory cards and Windows CE licenses. Memory cards and Windows CE licenses are required for operation; Communication modules are an optional add-on for insertion.

Memory cards

  • Compact Flash card without operating system.
  • Compact Flash card pre-installed with Windows CE 5.0 Core operating system

Windows CE licenses

All XV-400 devices require a Windows CE license.

Communication modules

Optional plug-in communications cards.
The 5.7" and 8.4" have slots for one card, while devices 10.4" and larger can accept two cards. No licenses are needed for communication with these cards.

Other Pictures

Article No

Product Code

Product Description

139900

XV-460-84TVB-1-10

Touch Display  HMI-PLC 8,4"

139971

XVS-460-84MPI-1-10

Touch Display  HMI-PLC 8,4"

139902

XV-430-10TVB-1-10

Touch Display  HMI-PLC 10,4"

139904

XV-440-10TVB-1-10

Touch Display  HMI-PLC 10,4"

139972

XVS-430-10MPI-1-10

Touch Display  HMI-PLC 10,4"

139973

XVS-440-10MPI-1-10

Touch Display  HMI-PLC 10,4"

139909

XV-430-12TSB-1-10

Touch Display  HMI-PLC 12,1"

139911

XV-440-12TSB-1-10

Touch Display  HMI-PLC 12,1"

169824

XV-460-12TSB-1-10

Touch Display  HMI-PLC 12,1"

139974

XVS-430-12MPI-1-10

Touch Display  HMI-PLC 12,1"

139975

XVS-440-12MPI-1-10

Touch Display  HMI-PLC 12,1"

139916

XV-460-15TXB-1-10

Touch Display  HMI-PLC 15"

139976

XVS-460-15MPI-1-10

Touch Display  HMI-PLC 15"



HMI-PLC XV400 10.4"/12.1"/15" USER MANUAL

HMI-PLC XV400 5.7"/8.4" USER MANUAL

Windows CE

XSoft-CoDeSys-2: PLC programming XV400 USER MANUAL

XSoft-CoDeSys-2: PLC programming XV400 USER MANUAL

XSOFT-CODESYS-3PLC programming

Communication Module DPM-MC2 USER MANUAL

Communication Module EIB2-TP USER MANUAL

Communication Module MPB1-TP / MPB2-TP USER MANUAL

Communication Module PDP-TP USER MANUAL

HMI-PLC XVS400 10.4"/12.1"/15" USER MANUAL

HMI-PLC XVS400 5.7"/8.4" USER MANUAL

System Description

XSoft-CoDeSys-2: PLC programming XVS400 USER MANUAL

XSoft-CoDeSys-2: PLC programming XVS400 USER MANUAL

XSoft-CoDeSys-2: PLC programming XVS400 USER MANUAL

XSOFT-CODESYS-3 PLC programming
