XN300 I/O System with high channel density

In combination with our existing PLC and HMI PLC products, the XN300 I/O system provides an ideal system solution for machine building applications meant for mass production environments. Our CODESYS programming software and Galileo visualization software round off the range of powerful products, making Eaton the industry's system supplier of choice.

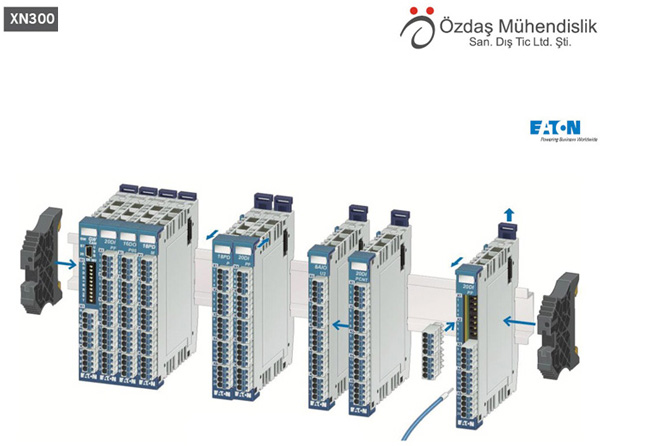

XN300 – This ultra-compact, slice-card-based modular I/O system with a plug-in, high-density connection system can be combined with HMI PLC products in order to create a system solution that is just perfect for the application in question. In addition, application-oriented functions result in lower device costs and make it possible to obtain the perfect system solution while taking up a minimal amount of space. All this is combined with a sleek design and a practical installation concept that make handling easier and allow users to pre-assemble their I/O block and install sensors and actuators in advance. The plug-in connection system, together with clear signal allocation, make commissioning easier and round off the system's characteristics in order to make it the perfect solution for the needs of machine building applications meant for use in mass production environments.

Special features:

  • Ultra-compact, slice-card-based modular I/O system with a field bus interface and high channel density.
  • Application-oriented functions that result in lower device costs and make it possible to obtain the perfect system solution while taking up a minimal amount of space.
  • A sleek design and a practical installation concept that make handling easier and allow users to pre-assemble their I/O block.
  • A plug-in connection system and clear signal allocation make commissioning faster and maintenance easier.
  • The XN300 Assist software tool supports engineering and commissioning.
  • Rounds off our range of XV products (HMI PLC), making them just the perfect solution for the needs of machine building applications meant for use in mass production environments.

Other Pictures

Article No

Product Code

Product Description

178782

XN-312-GW-CAN

XN300 Communication Module - CANopen

178786

XN-322-20DI-PD

XN300 Dijital Input Module - 20DI, 24VDC, 5.0ms

178768

XN-322-20DI-PF

XN300 Dijital Input Module - 20DI, 24VDC, 0.5ms

178767

XN-322-20DI-PCNT

XN300 Dijital Input Module - 20DI, 24VDC, 2/4 CNT, 25kHz

178787

XN-322-16DO-P05

XN300 Dijital Autput Module - 16DO, 24VDC, 0.5A

178788

XN-322-12DO-P17

XN300 Dijital Autput Module - 12DO, 24VDC, 1.7A

179288

XN-322-8AI-I

XN300 Analog Input Module - 8AI, 0/4-20mA

178789

XN-322-7AI-U2PT

XN300 Analog Input Module - 6AI, +/-10V, 1 PT/KTY, Uref

178792

XN-322-10AI-TEKT

XN300 Analog Input Module - 8AI, Termokupl , 2 KTY

178772

XN-322-4AI-PTNI

XN300 Analog Input Module - 4AI, PT/Ni/KTY/R, 2/3 Wire

178790

XN-322-8AO-U2

XN300 Analog Autput Module - 8AO, +/-10V

178791

XN-322-8AIO-U2

XN300 Analog Input-Autput Module - 4AI, 4AO, +/-10V, Uref

178795

XN-322-1CNT-8DIO

XN300 Counter Module - 1 CNT, 125kHz, 16Bit, 4DI, 4DO

178793

XN-322-2DMS-WM

XN300 Weigh Module - 2DMS, 24Bit

178794

XN-322-1DCD-B35

XN300 DC-Motor Drive Module - 12-30V, Brush, 3.5A

178773

XN-322-2SSI

XN300 Serial Connection Module - 2 SSI, RS422, 32Bit

178796

XN-322-4PS-20

XN300 Power Supply Module - 4 x 24VDC/2A

178769

XN-322-18PD-M

XN300 Power Distribution Module - 18 Canal, GND

178770

XN-322-18PD-P

XN300 Power Distribution Module - 18 Canal, VCC



Gateway
CANopen

  • Dimensions (W x H x D): 12.5 mm x 101.8 mm x 72 mm
  • System configuration: with up to 32 slice cards
  • Backplane baud rate of: 100 MBd

Digital
Inputs

20 channels, 24 V DC, high-side switching
Variants:
– CNT (25 kHz)
– Delay (5 ms, O.5 ms)
Outputs
12/16 channels,
24 V DC, high-side switching
Variants:
– 0.5 A, 1.7 A
– Powered in groups

Analog
Inputs
4/8 channels
Variants:
– U, KTY, Uref
– THERMO, KTY
– PT, NI, KTY,R
– I
Outputs4/8 channels,
Variants:
– U
Multi-functional
4AI/4AO 8 channels,
Variants:
– U

Technology
DMS Module
2 channels 24 Bit, +/- 0.0035 %
Wheatstone bridge for operating 4/6-conductor load cells
Counter module
1CNT, 4DI, 4DO
RS422, TTL, 125 kHz
Encoder power supply: 5 V/0.2 A
DC motor driver module
24 VDC/3.5 A brushed motor
1 LED Driver 350 mA
1 LED Driver 20 mA

Power
Power supply

Short-circuit-protected distribution of power supply energy 4 x 2 A
Field potential distribution
Passive distribution terminal
18 x potential outputs
2 x potential inputs

Connection
- Push-in connection for conductors
- Plug-in connection, subdivided into 5 groups of 4 cables each (the connectors are included as standard)
Connection specifications
Rigid / flexible cable sizes [mm²] / [mm²] / AWG: 0.2 – 1.5 / 0.2 – 1.5 / 24 – 16
Flexible with uninsulated ferrule [mm²]: 0.2 – 1.5
Flexible with insulated ferrule [mm²]: 0.2 – 0.75
Stripping length [mm]: 10
For the relevant technical details, please consult our online catalog.
