XC100-XC121-XC200 for Modul

Modular PLCs XC

Modular PLCs have a freely scalable structure making them suitable for a wide spectrum of applications. Users have the flexibility of designing their automation systems to fit their own requirements. Additional features include integration into modern communication concepts and networking options.

XC100

The modular PLC of the XC100 series is for small and medium-sized control tasks. The series can be expanded locally with up to 15 XI/OC modules. All XC-CPU101-XV devices feature a WEB server.

XC200

The modular PLCS of the XC200 series feature high performance and excellent communication features. In addition to an RS232 interface and a CANopen fieldbus interface, the series features an integrated Ethernet interface. All XC-CPU-XV feature an integrated WEB server.

XI/OC input/output expansion modules

  • Compact I/O system for connection to the XC100/200 modular PLCs
  • XC100/200 can be extended with max. 15 XI/OC modules
  • Terminations can be made via a screw terminal or tension-clamp technology
  • Approvals UL/CSA

XSoft-CoDeSys-2

XSoft-CoDeSys-2 is a programming system, based on 3S for industrial plc compliant with the international Standard IEC 61131-3. The XSoft-CoDeSys-2 programming software is a continuation of XSOFT-PROFESSIONAL.

Advantages

  • Simple handling
  • Sophisticated technical properties
  • A range of important functions to quickly and efficiently debug, test and commission control applications
  • Integrated online simulation
  • Structuring the application into several independent runtime programs (multi-tasking)
  • Fieldbus configurator
  • Further availability of automation components from different manufacturers

Programming languages:

  • Instruction list (IL) and structured text (ST)
  • Function block diagram (FBD)
  • Freely definable graphical function block chart/continuous function chart (CFC)
  • Ladder diagram (LD)
  • Sequential function chart (SFC)

Other Pictures

Article No

Product Code

Product Description

DIGITAL MODULES

257891

XIOC-8DI

Expanded Module (XIOC) 8DI 24VDC

257892

XIOC-16DI

Expanded Module (XIOC) 16DI 24VDC

267411

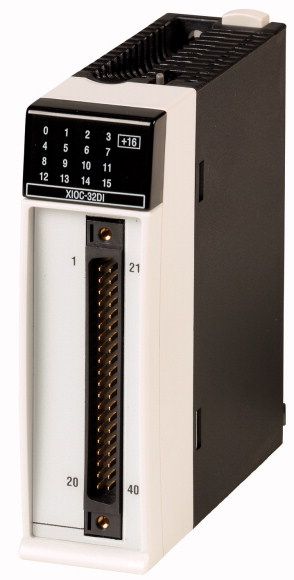

XIOC-32DI

Expanded Module (XIOC) 32DI 24VDC

257894

XIOC-8DO

Expanded Module (XIOC) 8DO(T) 24VDC

257896

XIOC-16DO

Expanded Module (XIOC) 16DO(T) 24VDC

257895

XIOC-16DO-S

Expanded Module (XIOC) 16DO(T) 24VDC

267413

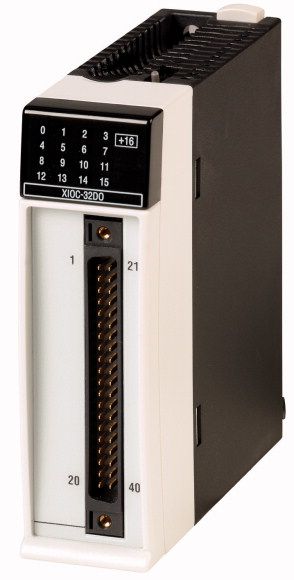

XIOC-32DO

Expanded Module (XIOC) 32DO(T) 24VDC

257897

XIOC-12DO-R

Expanded Module (XIOC) 12DO(R) 24VDC

262322

XIOC-16DX

Expanded Module (XIOC) 16DI/DO prog.

ANALOG MODULES

262549

XIOC-8AI-I2

Expanded Module (XIOC) 8AI (4-20mA)

257899

XIOC-8AI-U1

Expanded Module (XIOC) 8AI (0-10V)

257900

XIOC-8AI-U2

Expanded Module (XIOC) 8AI (±10V)

257901

XIOC-4T-PT

Expanded Module (XIOC) 4AI (Pt100/1000)

289933

XIOC-4AI-T

Expanded Module (XIOC) 4AI (Termocouple)

257902

XIOC-2AO-U1-2AO-I2

Expanded Module (XIOC) 2AO (0-10V) 2AO (4-20mA)

257903

XIOC-4AO-U1

Expanded Module (XIOC) 4AO (0-10V)

262409

XIOC-2AI-1AO-U1

Expanded Module (XIOC) 2AI + 1AO (0-10V)

281545

XIOC-2AI-1AO-U1-I1

Expanded Module (XIOC) 2AI + 1AO (0-10V/4-20mA)

262405

XIOC-4AI-2AO-U1

Expanded Module (XIOC) 4AI + 2AO (0-10V)

281544

XIOC-4AI-2AO-U1-I1

Expanded Module (XIOC) 4AI + 2AO (0-10V/4-20mA)

COUNTER MODULES

257906

XIOC-1CNT-100KHZ

Expanded Module (XIOC) 1CI (100KHz) + 2DO(T)

257907

XIOC-2CNT-100KHZ

Expanded Module (XIOC) 2CI (100KHz) + 4DO(T)

262417

XIOC-2CNT-2AO-INC

Expanded Module (XIOC) 2CI (400KHz) + 2AO (±10V)

COMMUNİCATİON CADR

267191

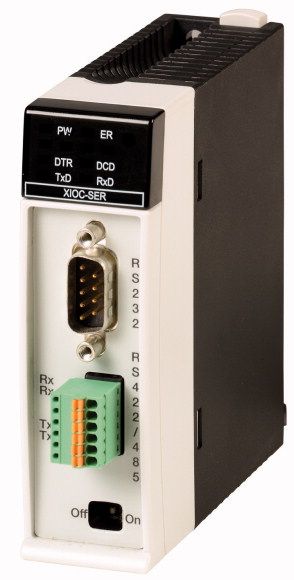

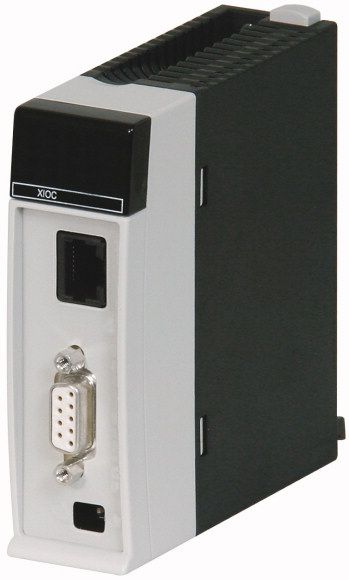

XIOC-SER

Communication Card (XIOC) RS232C, 485, 422

257908

XIOC-NET-DP-M

Communication Card (XIOC) Profibus DP master

286419

XIOC-NET-DP-S

Communication Card (XIOC) Profibus DP slave

289982

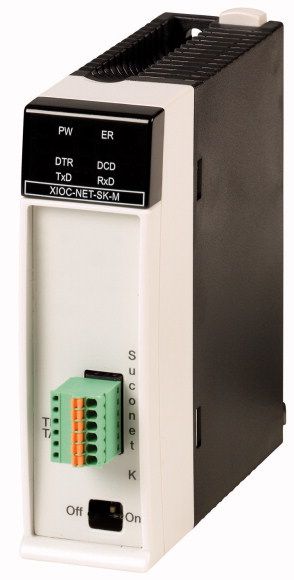

XIOC-NET-SK-M

Communication Card (XIOC) Suconet K master

CONNECTION TERMINAL

258104

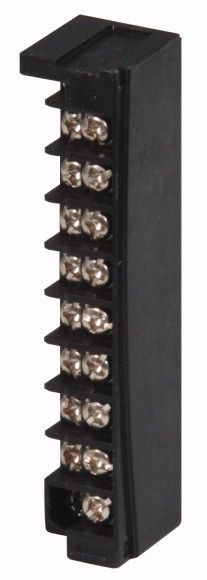

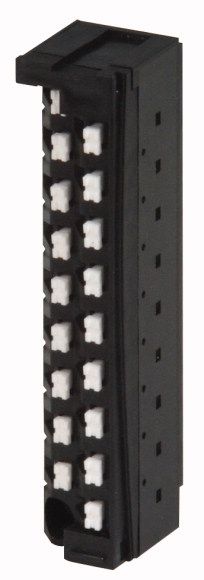

XIOC-TERM-18T

Connection Terminal

258102

XIOC-TERM-18S

Connection Terminal

262248

XIOC-TERM30-CNT4

Connection Terminal

267414

XIOC-TERM32

Connection Terminal



XC100

  • Memory card: SD
  • Integrated fieldbus: CANopen (1 MBaud)
  • OPC server
  • Additional interfaces: RS232 XC
  • XC-CPU101-C-64K-8DI-6DO
    Program memory 64 kByte
    Data memory 64 kByte
  • XC-CPU101-C128K-8DI-6DO Program memory 128 kByte
    Data memory 128 kByte
  • XC-CPU101-C-256K-8DI-6DO
    Program memory 256 kByte
    Data memory 256 kByte

XC200

  • Memory card: SD/MMC
  • Expandable with up to 15 XI/OC modules
  • Integrated fieldbus CANopen (1MBaud)
  • OPC server
  • Additional interfaces: RS 232, USB, Ethernet
  • XC-CPU201-EC256K-8DI-6DO/-XV
    Program memory 512 kByte
    Data memory 256 kByte
  • XC-CPU201-EC512K-8DI-6DO/-XV
    Program memory 2048 kByte
    Data memory 512 kByte

Article No

Product Code

Product Description

290450

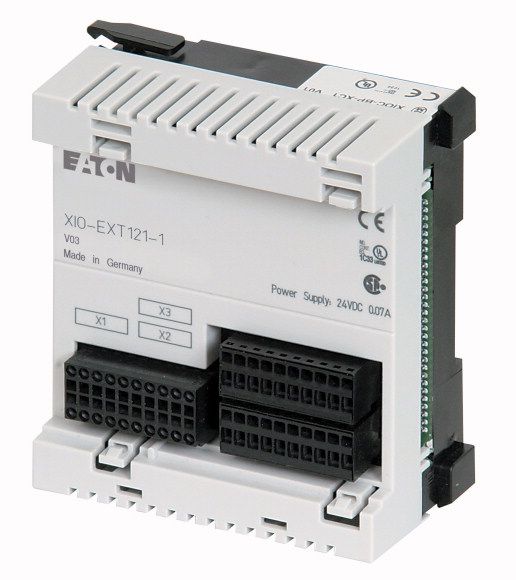

XIO-EXT121-1

XC121 I/O module

260792

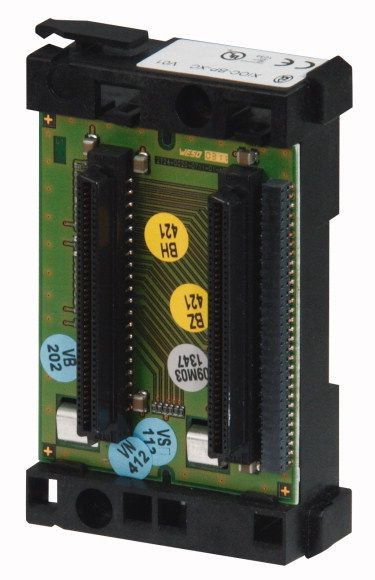

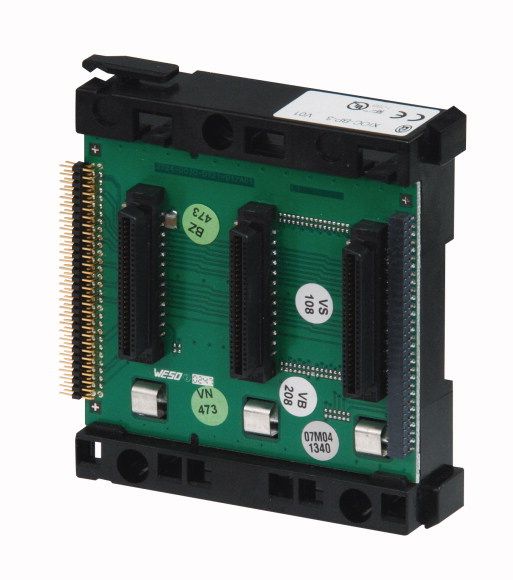

XIOC-BP-XC

Rak (XC-CPU for)

260793

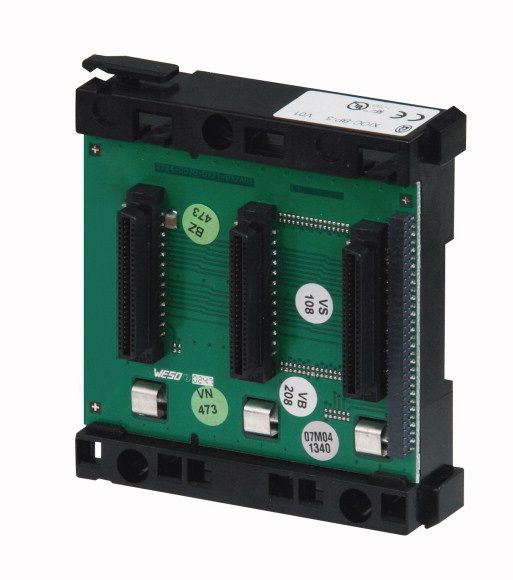

XIOC-BP-XC1

Rak (XC-CPU  and XIOC Card for)

260794

XIOC-BP-2

Rack (XIOC Card for)

260795

XIOC-BP-3

Rack (XIOC Card for)

274291

XIOC-BP-EXT

Rack (XIOC Card for)
