EASY 800 SERIES

easy800
Ideal for large open-loop and closed-loop control tasks with up to 328 I/Os

Full functional range of an easy700
A host of additional functions such as PID controller, maths functions, pulse width modulation, value scaling, high-speed counters (5 kHz)
256 rungs with 4 contacts each and 1 coil in series
Digital and analogue expandability
Integrated communication via easyNet possible (up to 8 stations – up to 1000 m)
Connection possible to standard bus systems (PROFIBUS, CANopen, DeviceNet, Asi) and Ethernet (programming and OPC functionality)
Online communication with easy800 via bluetooth with bluetooth adapter EASY800-BLT-ADP.
(For further informations please go to "Bluetooth")
Mobile remote access to easy800 through Android smartphone with the free easyRemote Display App and Bluetooth adapter.
(Further information under "easyApp".)

easy800 with SmartWire-DT

Combines the functions of an easy800 with the direct connection to the communication system for switchgear SmartWire-DT:

Exchange of data as well as power supply for the SmartWire-DT devices and contactors via the communication system SmartWire-DT
Up to 99 SmartWire-DT devices in total with up to 166 inputs/outputs can be connected
easyNet as well as 4 additional fast inputs, 2 of which are also useable as fast outputs
Serial interface for programming or for connection of a remote text display, touch panel or connection to Ethernet.

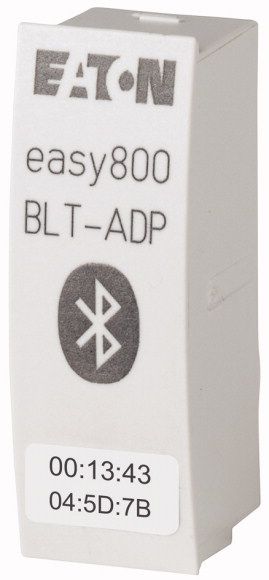

Bluetooth adapter for easy800, MFD-CP8/CP10 and easyControl

The Bluetooth adapter makes it possible to conveniently commission and service machines and other equipment remotely:

Simple communication with easy800, MFD-Titan or easyControl from outside loud and/or dangerous areas
Remotely test, commission, and service applications, transfer them to PLCs, or diagnose faults
An 8-digit PIN security code prevents unauthorized remote access to PLCs
Simple recognition of bluetooth adapter in Windows 7
Full online functionality with easySoft-Pro from V6.91 onward and CODESYS
Has all necessary radio type approvals for Europe, the USA, and Canada
A range of up to ten meters in industrial environments
Small, compact design in practical pocket-size format
In conjunction with the free easyRemote Display App, mobile access to easy800 with an Android smartphone through Bluetooth
(for more information, click the "easyApp" tab)

Other Pictures

Article No	Product Code	Product Description

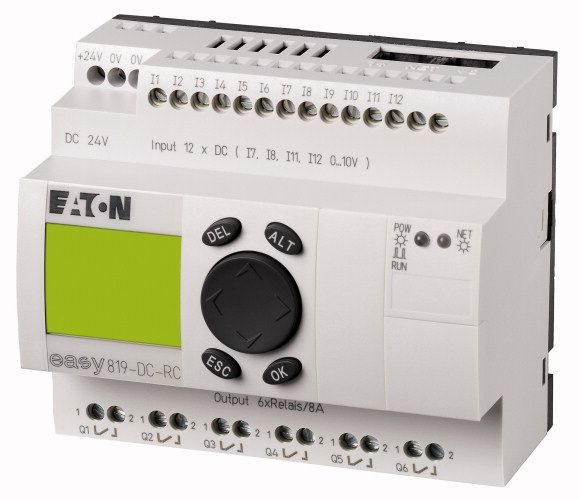

256269	EASY819-DC-RC	Easy Control Relay-Display, 24VDC 12DI / 6DO(R)

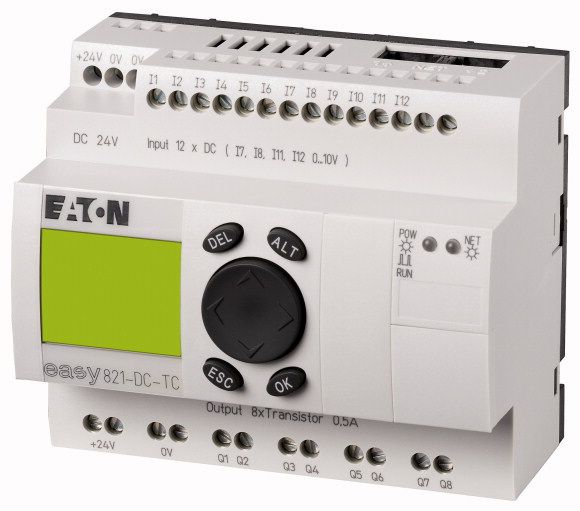

256273	EASY821-DC-TC	Easy Control Relay-Display, 24VDC 12DI / 8DO(T)

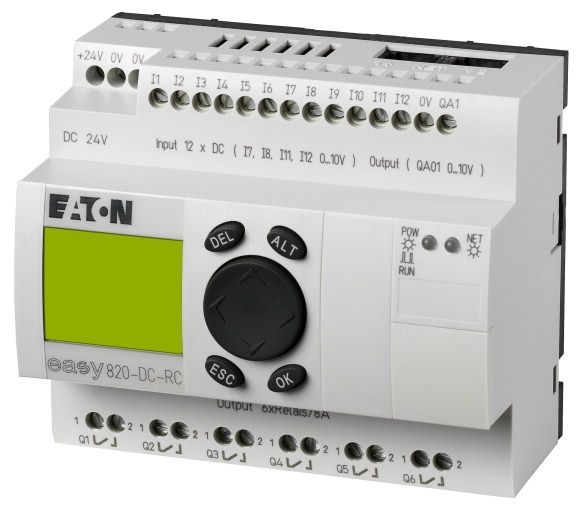

256271	EASY820-DC-RC	Easy Control Relay-Display, 24VDC 12DI / 6DO(R)
256275	EASY822-DC-TC	Easy Control Relay-Display, 24VDC 12DI / 8DO(T)

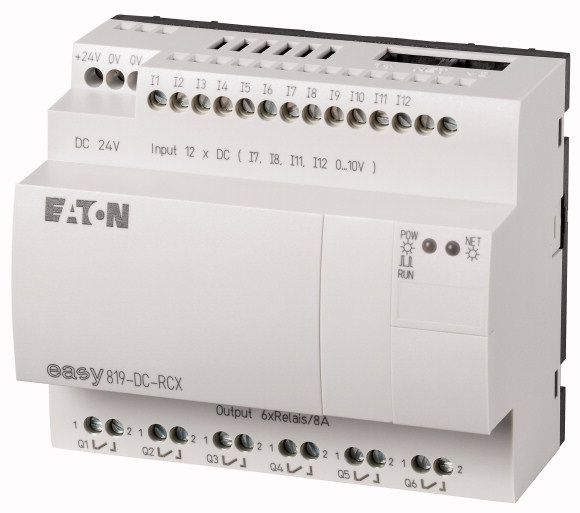

256270	EASY819-DC-RCX	Easy Control Relay- 24VDC 12DI / 6DO(R)
256274	EASY821-DC-TCX	Easy Control Relay,- 24VDC 12DI / 8DO(T)

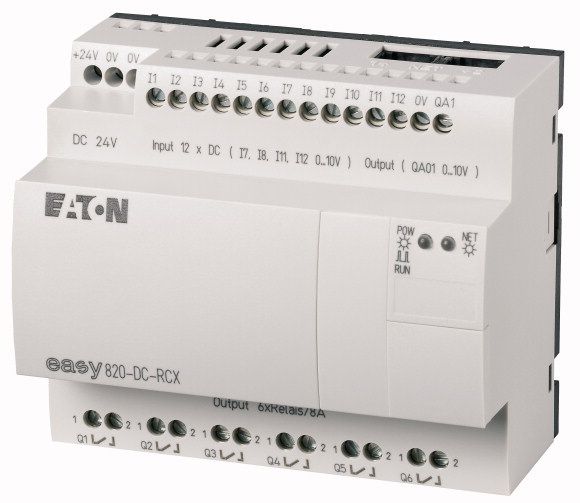

256272	EASY820-DC-RCX	Easy Control Relay- 24VDC 12DI / 6DO(R)

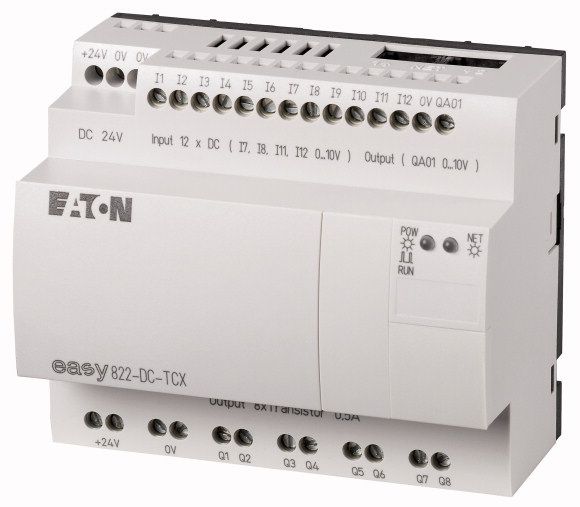

256276	EASY822-DC-TCX	Easy Control Relay-, 24VDC 12DI / 8DO(T)

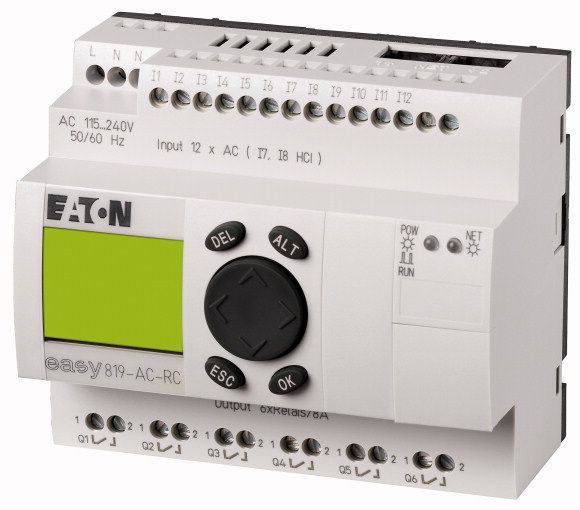

256267	EASY819-AC-RC	Easy Control Relay-Display, 230VAC 12DI / 6DO(R)

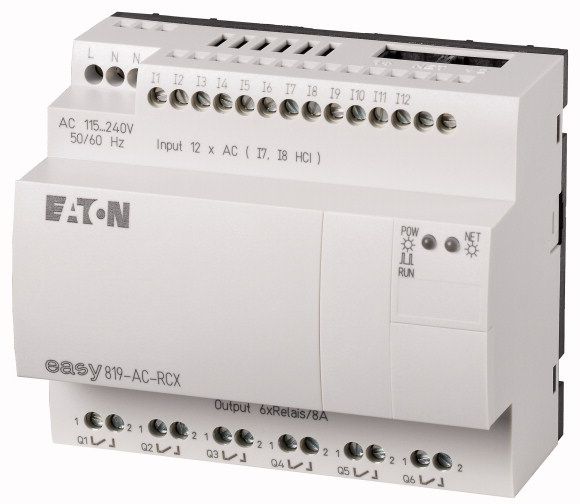

256268	EASY819-AC-RCX	Easy Control Relay-, 230VAC 12DI / 6DO(R)

Operating and programming software easySoft
easySoft-Basic supports:

easy400/500
easy600/700

easySoft-Pro supports:

easy400/500
easy600/700
easy800 und MFD-Titan

easySoft makes things simple for the user. Selection menus and "drag and drop" functions simplify linking tasks.

The following display options are available for viewing, editing and printing the program:

Compliant to IEC with contact and coil schematic symbols, international standard
With easy circuit diagram, 1:1 in the representation as on the easy display
Compliant to ANSI the American standard.

The integrated SmartWire-DT configurator facilitates rapid engineering of the SmartWire-DT line and very simple assignment of the SmartWire-DT inputs and outputs to the easy operands. The practical off-line simulation tool enables users to check the correct functioning of the circuit diagram before commissioning and without a connected device. Online states can of course also be viewed in the program. Comments and names for contacts, coils and function blocks allow you to create a clear structure. A cover sheet with a customised company logo and freely definable title fields, as well as the cross-reference list with comments provide a clear and complete documentation of your application from the program printout.

easySoft is available in 13 languages and can be installed under Windows 2000 SP4, Windows XP SP2, Windows Vista (32 bit), Windows 7 (32 bit and 64 bit) and Windows 8 (32 bit and 64 bit)

easyRemote Display App

The easyRemote Display application is free and provides simple and fast remote access via Bluetooth to control relay easy800 with an Android smartphone. Users can view texts and values, change parameters, check and edit the circuit diagram, set the date and time and change the operating mode. The easyRemote Display App runs on smartphones with Android from Version 2.2.

Modern communication with easy800 through mobile smartphone access to the control relay at a distance of up to 10 m
Flexible indication and operation of the control relay, also outside noisy and dangerous areas
With easyRemote Display App: fault indication, setpoint value input, setting date and time, entering the device password, changing operating mode, checking the states of inputs and outputs, editing the circuit diagram, etc.
Convenient access to all available display and operating functions of the easy800 from a smartphone, as if working directly on the control relay
Specially suitable for installers, maintenance personnel, service engineers, machine operators and end customers who require quick, targeted access to their easy800
Efficient monitoring of several machines with only a single visualization device
Protection against unauthorised access to the control relay through the secure Bluetooth connection through a unique 8-digit PIN and, in addition, optionally through the device password of the easy800
Color scheme of the easyRemote Display App with adjustable contrast for good readability in sunshine or bright lighting
Can be used only in combination with Bluetooth adapter EASY800-BLT-ADP and a smartphone with Android version 2.2 or higher

How does it work? – it’s easy:

Download easyRemote Display App to your Android phone from Google Play and install.
Connect Bluetooth adapter EASY800-BLT-ADP to the programming port of your easy800.
Activate the Bluetooth interface on your smartphone
Start the easyRemote Display App and search for available Bluetooth devices
Enter the Bluetooth adapter’s 8-digit PIN to establish a secure Bluetooth connection (pairing).
Through the connected Bluetooth adapter connect to the easy800, view display contents and operate the control relay.

easyParameter App

The easyParameter App allows for customization of individual smartphone user interfaces when controlling an application using easy800. The administrator has flexibility in adjusting the user interface for the app user and determines which parameters can be read and modified from the smartphone (date, time, actual and setpoint values for function blocks, annual and weekly timer, status of marker bits and inputs/outputs).

User interface can be customized for better clarity and easier control of machine by the user
Flexible indication and operation of the control relay, also outside noisy and dangerous areas
Efficient monitoring of several machines with only a single visualization device
Simple handling of a wide range of machine access rights using various user interfaces
Modern communication with easy800 through mobile smartphone access to the control relay at a distance of up to 10 m
Can be switched into English, German, French, Dutch, Italian, Polish and Spanish
Can be used only in combination with Bluetooth adapter EASY800-BLT-ADP and a smartphone with Android version 2.2 or higher

How does it work? – simply easy

Record the 8-digit PIN on the back of the EASY800-BLT-ADP Bluetooth adapter and insert adapter into the easy800's programming interface
Activate the Bluetooth interface on the smartphone, search for available Bluetooth devices and establish the Bluetooth connection by entering the 8-digit PIN for the Bluetooth adapter (pairing)
Download the easyParameter App from Google Play onto a smartphone, wait for it to install and then launch it (an "Eaton/easyParameter App" folder is created upon start-up)
Download the Excel configuration tool easyParameter_Configuration_Vxx.xlsm and then configure the desired user interface
Create a configuration file (.xls) from the now-configured user interfaces.
Copy the newly created configuration file into the smartphone directory "Eaton/easyParameter App"
Start the easyParameter App, import the configuration file into the app, select Bluetooth adapter and link to the control relay.

Article No	Product Code	Product Description
232186	EASY202-RE	Easy Expansion Modules- 2DO(R)

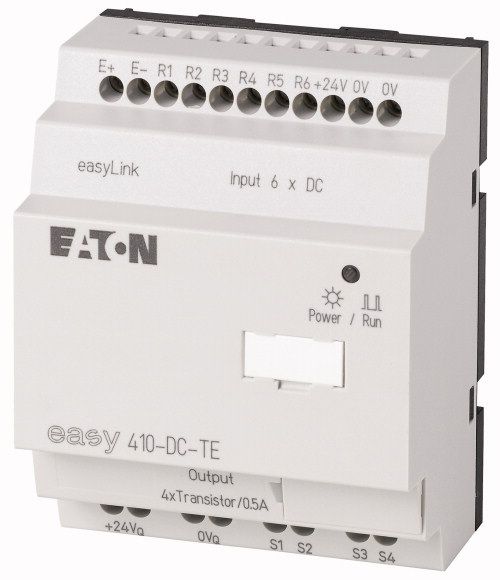

114294	EASY410-DC-TE	Easy Expansion Modules- 24VDC 6DI / 4DO(T)

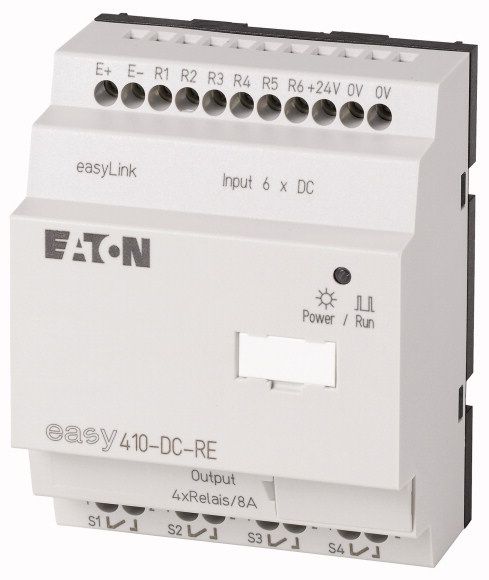

114293	EASY410-DC-RE	Easy Expansion Modules- 24VDC 6DI / 4DO(R)

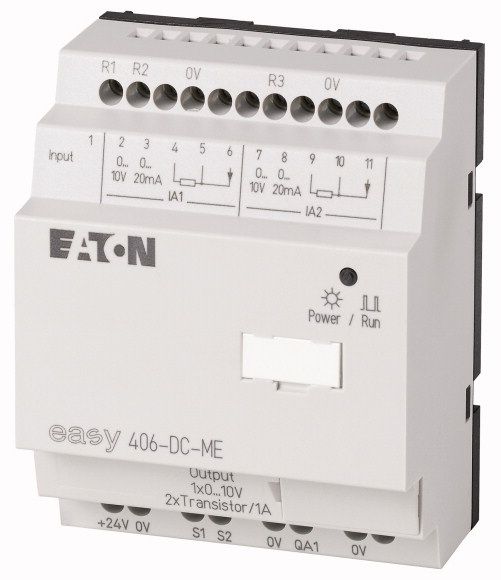

114295	EASY406-DC-ME	Easy Expansion Modules- 24VDC 1DI+2AI / 2DO(T)+1AO

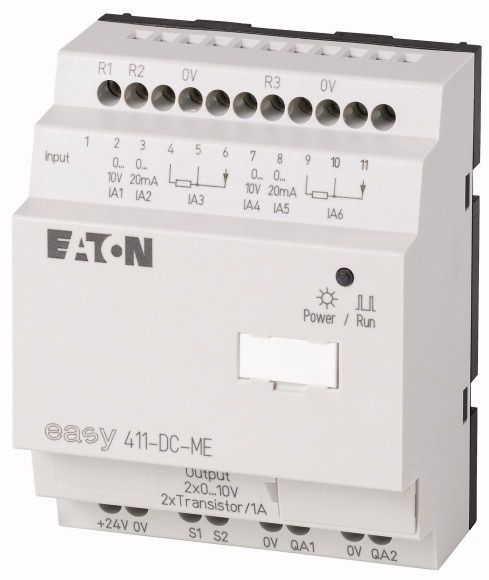

116567	EASY411-DC-ME	Easy Expansion Modules- 24VDC 1DI+6AI / 2DO(T)+2AO

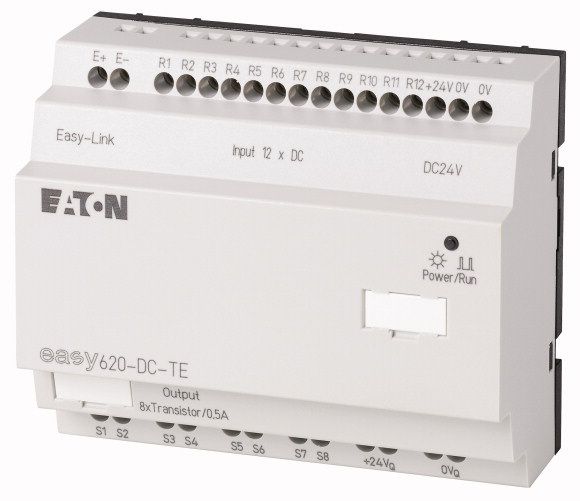

212313	EASY620-DC-TE	Easy Expansion Modules- 24VDC 12DI / 8DO(T)

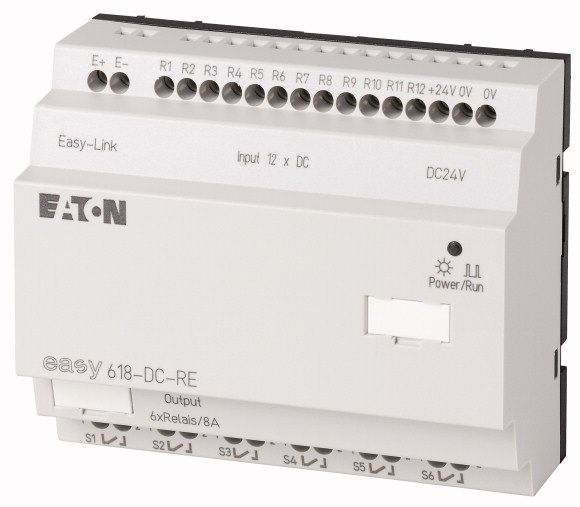

232112	EASY618-DC-RE	Easy Expansion Modules- 24VDC 12DI / 6DO(R)

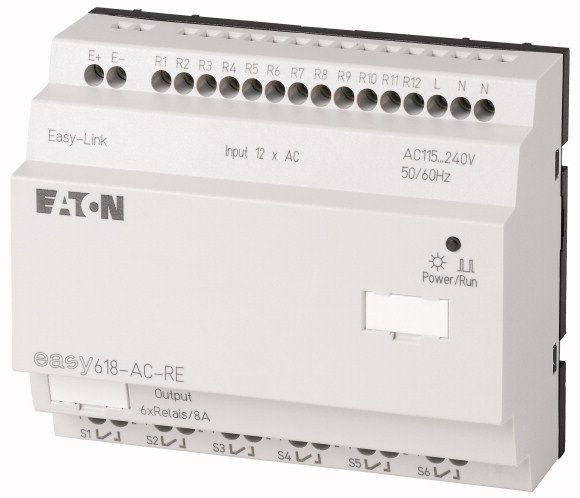

212314	EASY618-AC-RE	Easy Expansion Modules- 230VAC 12DI / 6DO(R)

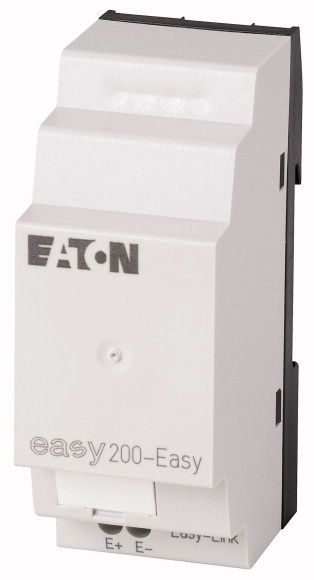

212315	EASY200-EASY	Easy Link

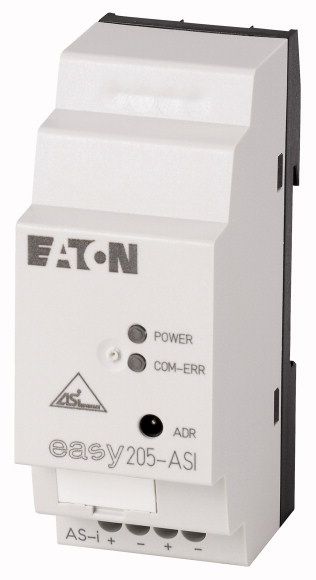

221598	EASY205-ASI	Easy Asi Interface

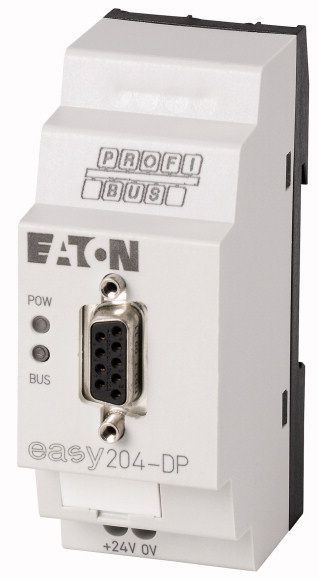

212316	EASY204-DP	Easy Profibus DP Interface

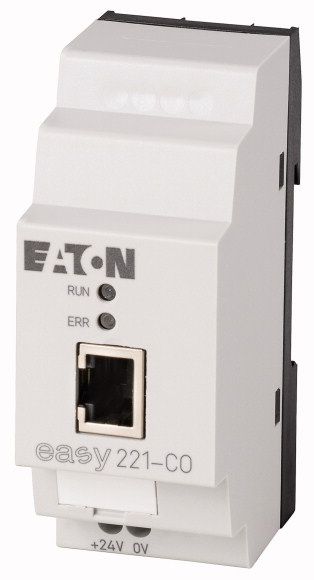

233539	EASY221-CO	Easy CANopen Interface

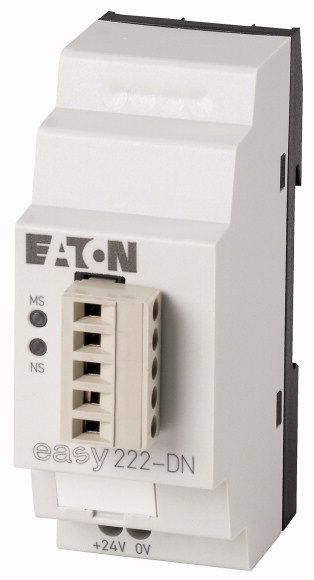

233540	EASY222-DN	Easy Device Net Interface

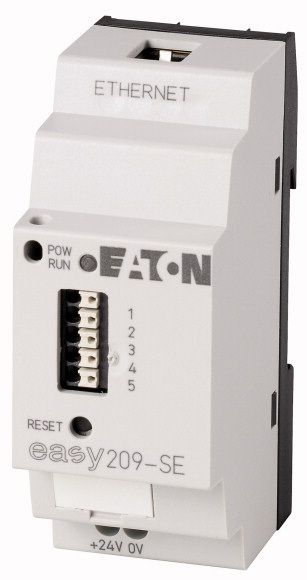

101520	EASY209-SE	Easy Ethernet Interface

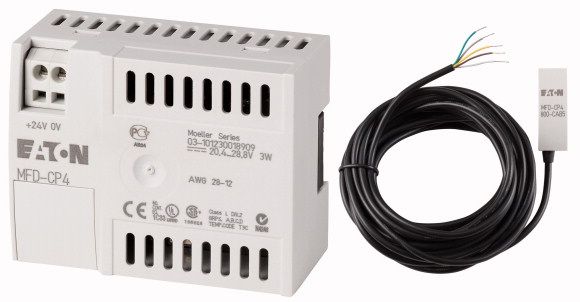

274094	MFD-CP4-500	MFD Power Supply 24VDC (Easy 500 ve 700 for)

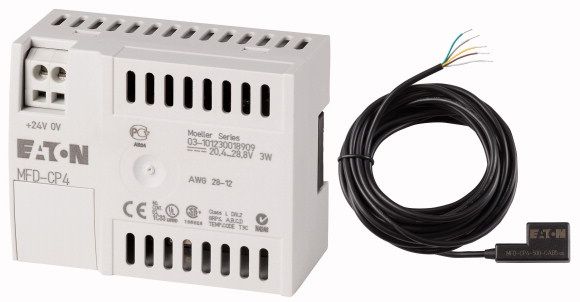

274095	MFD-CP4-800	MFD Power Supply 24VDC (Easy 800 for)

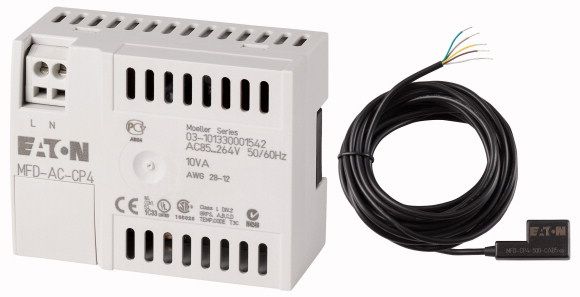

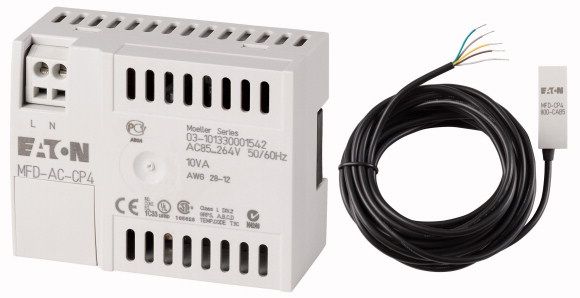

286823	MFD-AC-CP4-500	MFD Power Supply 240VAC (Easy 500 ve 700 for)
286824	MFD-AC-CP4-800	MFD Power Supply 240VAC (Easy 800 for)
284545	EASY-SOFT-BASIC	Easy Software-Basic
266040	EASY-SOFT-PRO	Easy Software-Pro

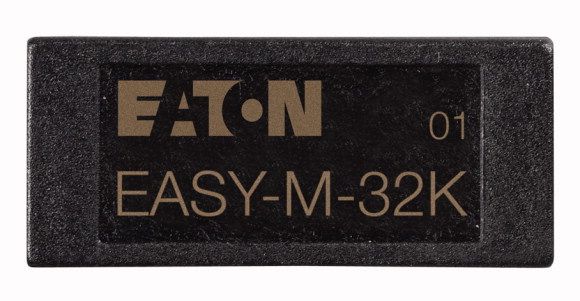

270884	EASY-M-32K	Memmory Card 32K (Easy 500 ve 700 for)

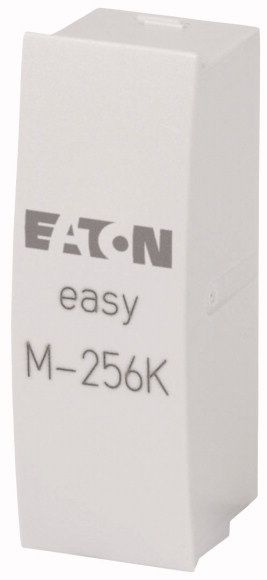

256279	EASY-M-256K	Memmory Card 256K (Easy 800 ve MFD for)

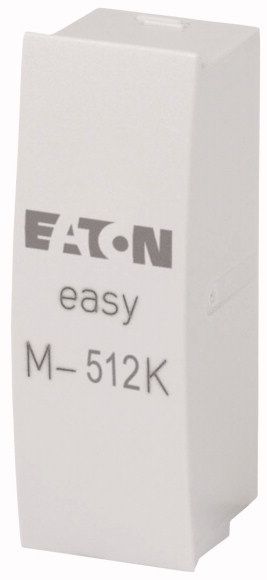

134969	EASY-M-512K	Memmory Card 512K (MFD-CP10 for)

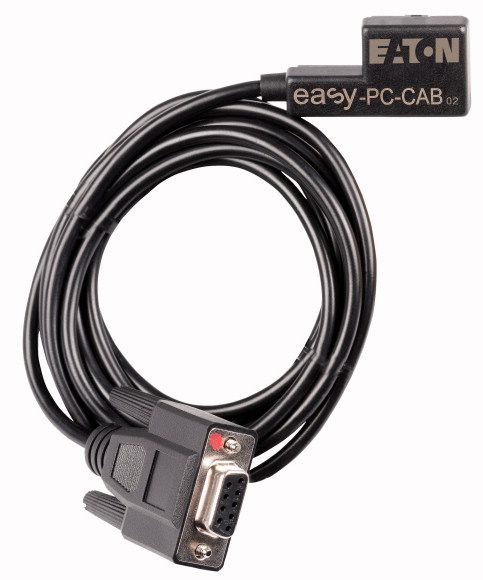

202409	EASY-PC-CAB	PC-EASY Programming Cable (Easy 500 ve 700 for)

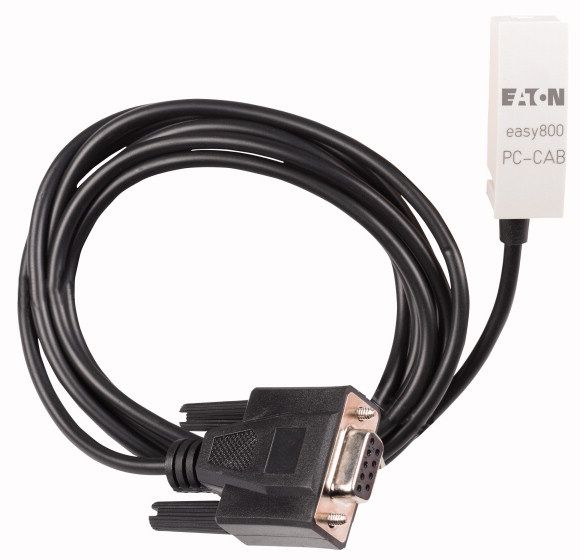

256277	EASY800-PC-CAB	PC-EASY Programming Cable (Easy 800 ve MFD for)

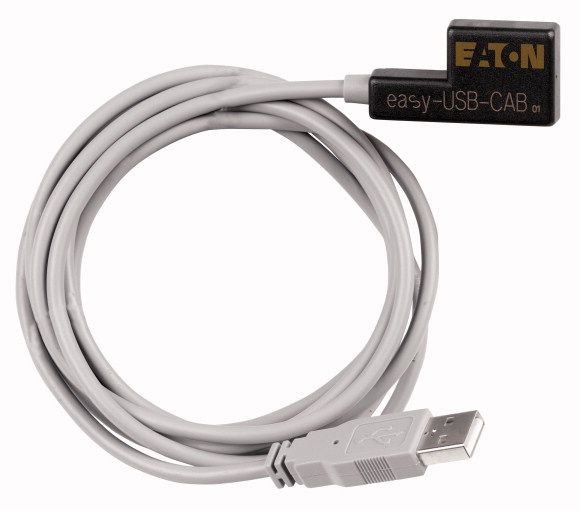

107926	EASY-USB-CAB	USB Programming Cable (Easy 500 ve 700 for)

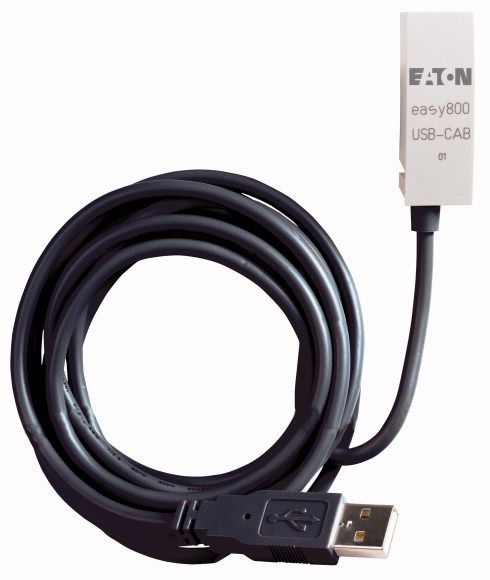

106408	EASY800-USB-CAB	USB Programming Cable (Easy 800 ve MFD for)
167651	EASY800-BLT-ADP	Bluetooth Programlama Adapter (Easy 800, MFD ve EC4P for)
212318	EASY412-DC-SIM	Simulator (Easy 500 ve 700 for)
256278	EASY800-DC-SIM	Simulator (Easy 700, 800 ve EC4P for)

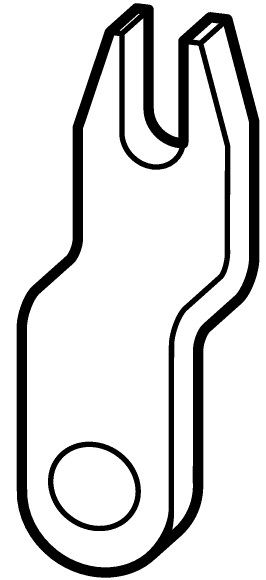

61360	ZB4-101-GF1	Fixing Bracket

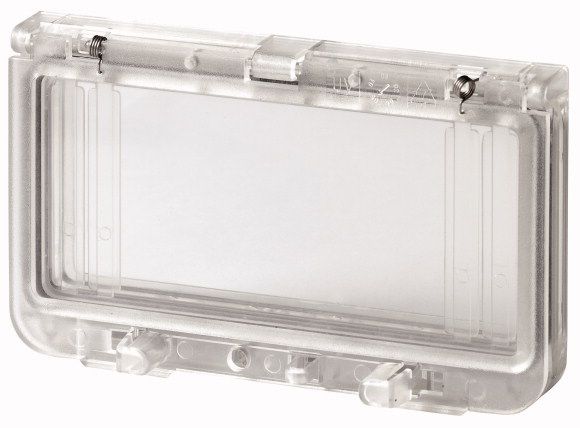

233780	SKF-FF4	Hinged inspection window (Easy 500 for)

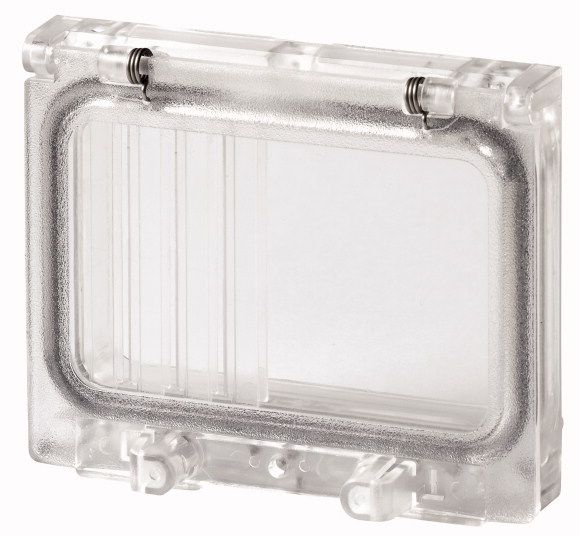

233781	SKF-FF6	Hinged inspection window (Easy 700 ve 800 for)
233782	SKF-HA	Top-hat rail adapter for hinged inspection window for the control relay's flush-mounting plates

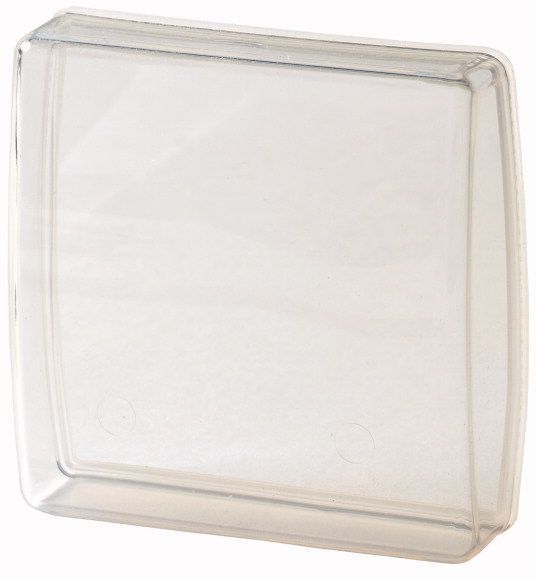

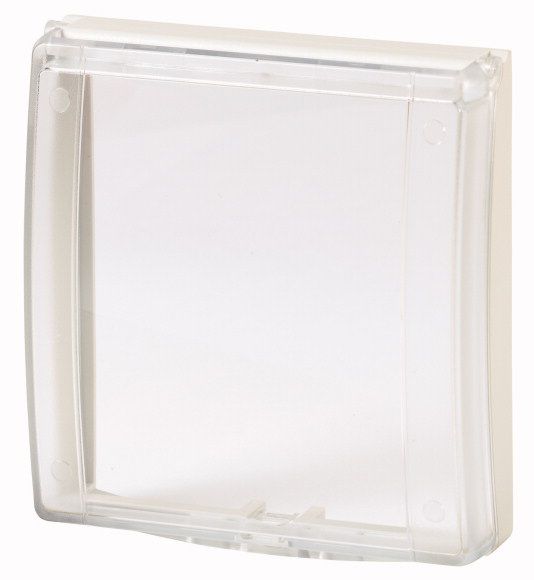

265259	MFD-XS-80	Protective cover for MFD-80(-B), can be sealed, transparent
265258	MFD-XM-80	Protective diaphragm for MFD-80-B, increases the housing's protection type to NEMA 4x, transparent

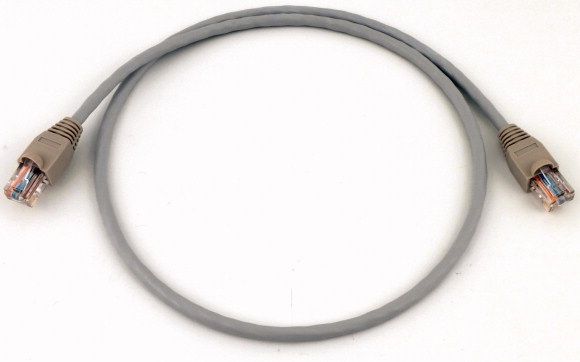

256283	EASY-NT-30	Network Cable 0,3m (Easy 800 ve MFD for)
256284	EASY-NT-80	Network Cable 0,8m (Easy 800 ve MFD for)
256285	EASY-NT-150	Network Cable 1,5m (Easy 800 ve MFD for)

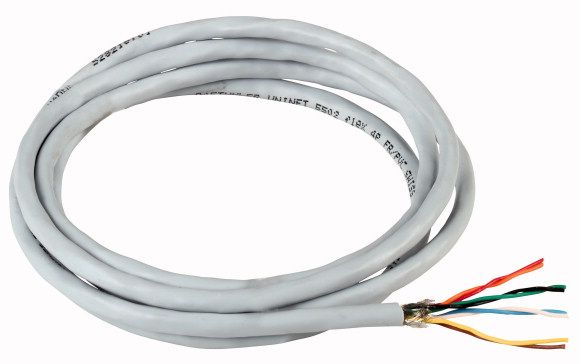

256286	EASY-NT-CAB	Data Cable (Easy 800 ve MFD for)

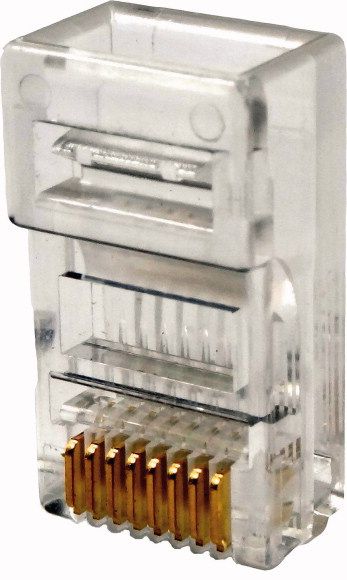

256280	EASY-NT-RJ45	Konnector (Easy 800 ve MFD for)

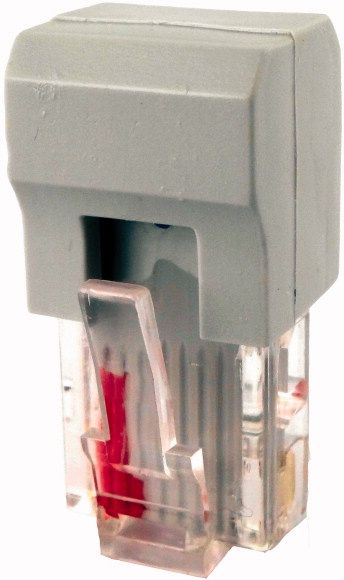

256281	EASY-NT-R	Bus termination resistor for easyNet, RJ45, 8p, 124 Ohm

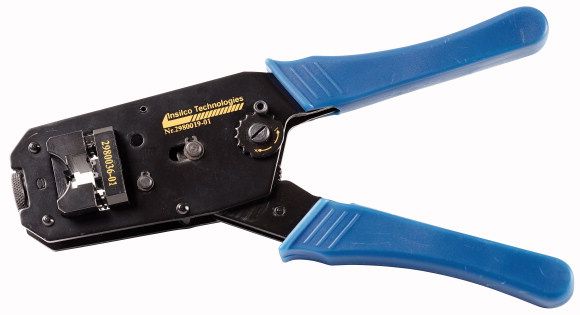

256282	EASY-RJ45-TOOL	Crimping tool for RJ45 plug
